Fully Augmented \(n\)-link Pendulum Benchmark Comparison

In this notebook we use the \(n\)-link pendulum example to compare the performance of kdFlex’s default SOA-base \(O(N)\) dynamics algorithm with the conventional \(O(N^{3}\)) methods for a fully augmented (FA) model. This notebook is similar to the \(n\)-link pendulum but is designed for benchmarking kdFlex’s simulation performance.

Requirements:

• n-link Pendulum

In this tutorial we will:

• Define a method to create the multibody

• Run simulations for each model

• Benchmark simulation runtimes

For a more in-depth descriptions of kdflex concepts see usage.

import os
import gc
import numpy as np
import time
from typing import cast
import pandas as pd
import plotly.express as px
from Karana.Core import discard, allFinalized
from Karana.Frame import FrameContainer
from Karana.Math import IntegratorType
from Karana.Dynamics import (
    Multibody,
    PhysicalBody,
    PhysicalBody,
    HingeType,
    StatePropagator,
    TimedEvent,
    SpSolverType,
    PhysicalBodyParams,
)
from Karana.Math import SpatialInertia, HomTran
from Karana.Models import UniformGravity

Define a Method to Create the Multibody

Define a method that procedurally creates a n-link multibody for use when we run simulations with increasing number of links. This is the same as in the n-link Pendulum

See Multibody or Frames for more information relating to this step.

def createMbody(fc: FrameContainer, n_links: int):
    """Create the multibody.

    Parameters
    ----------
    n_links : int
        The number of pendulum links to use.
    """
    mb = Multibody("mb", fc)

    # Here, we use the addSerialChain method to add multiple instances of the same body
    # connected in a chain. We add n instances of the pendulum link with the following parameters:
    params = PhysicalBodyParams(
        SpatialInertia(2.0, np.zeros(3), np.diag([3, 2, 1])),
        [np.array([0.0, 1.0, 0.0])],
        HomTran(np.array([0, 0, 0.5])),
        HomTran(np.array([0, 0, -0.5])),
    )
    PhysicalBody.addSerialChain(
        "link", n_links, cast(PhysicalBody, mb.virtualRoot()), htype=HingeType.PIN, params=params
    )

    # finalize and verify the multibody
    mb.ensureCurrent()
    mb.resetData()
    assert allFinalized()

    return mb

Because we run multiple simulations, we write a method ahead of time to cleanup everything whenever the simulation ends. This requires us to delete local variables and discard our containers and scene.

def cleanup():
    """Cleanup the simulation."""
    global integrator, bd1
    del integrator, bd1

    discard(sp)
    gc.collect()

    discard(mb)
    discard(fc)

Run simulations for each model

Below is the run loop for each simulation. It loops through each sim with an increasing number of links and collects the time it takes to complete.

# Number of links we will run at

n_links_list = [3, 5, 8, 10, 13, 16, 20, 25]

sim_types = ["MinCoord", "fullyAugmented"]

for sim in sim_types:

    runtimes = []
    deriv_calls = []

    for n_links in n_links_list:

        # initialization
        fc = FrameContainer("root")
        mb = createMbody(fc, n_links)

        # Modify the initial multibody state. Here we will set the first pendulum to 0.5 radians.
        bd1 = mb.getBody("link_0")
        bd1.parentHinge().subhinge(0).setQ([0.5])
        bd1.parentHinge().subhinge(0).setU([0.0])

        # Switching to fully augmented model
        if sim == "fullyAugmented":
            mb.toFullyAugmentedModel()

        # Set up state propagator and select integrator type: rk4 or cvode
        stype = (
            SpSolverType.TREE_DYNAMICS
            if sim == "MinCoord"
            else SpSolverType.TREE_AUGMENTED_DYNAMICS
        )
        sp = StatePropagator(mb, IntegratorType.RK4, None, None, stype)
        integrator = sp.getIntegrator()

        # add a gravitational model to the state propagator
        ug = UniformGravity("grav_model", sp, mb)
        ug.params.g = np.array([0, 0, -9.81])
        del ug

        # Initialize integrator state
        t_init = np.timedelta64(0, "ns")
        x_init = sp.assembleState()
        sp.setTime(t_init)
        sp.setState(x_init)

        # register the timed event
        h = np.timedelta64(int(1e7), "ns")
        t = TimedEvent("hop_size", h, lambda _: None, False)
        t.period = h
        sp.registerTimedEvent(t)
        del t

        # Keeping track of runtime when advancing simulation
        start_time = time.time()
        sp.advanceTo(2.0)
        end_time = time.time()
        run_time = end_time - start_time
        runtimes.append(run_time)
        derivs = sp.counters().derivs
        deriv_calls.append(derivs)

        # General output
        print(f"Number of links: {n_links}")
        print(f"Time to run: {run_time}, derivs={derivs}, simtype={sim}")

        # Cleanup
        cleanup()

    if sim == "fullyAugmented":
        runtimesFA = runtimes
    else:
        runtimesMinCoord = runtimes

Number of links: 3
Time to run: 0.5896553993225098, derivs=800, simtype=MinCoord
Number of links: 5
Time to run: 0.9507579803466797, derivs=800, simtype=MinCoord
Number of links: 8
Time to run: 1.4788484573364258, derivs=800, simtype=MinCoord
Number of links: 10
Time to run: 1.8719995021820068, derivs=800, simtype=MinCoord
Number of links: 13
Time to run: 2.416515588760376, derivs=800, simtype=MinCoord
Number of links: 16
Time to run: 3.036313533782959, derivs=800, simtype=MinCoord
Number of links: 20
Time to run: 3.672475814819336, derivs=800, simtype=MinCoord
Number of links: 25
Time to run: 4.5920729637146, derivs=800, simtype=MinCoord
Number of links: 3
Time to run: 3.931762456893921, derivs=800, simtype=fullyAugmented
Number of links: 5
Time to run: 7.254469156265259, derivs=800, simtype=fullyAugmented
Number of links: 8
Time to run: 14.218537330627441, derivs=800, simtype=fullyAugmented
Number of links: 10
Time to run: 20.672817707061768, derivs=800, simtype=fullyAugmented
Number of links: 13
Time to run: 32.69570302963257, derivs=800, simtype=fullyAugmented
Number of links: 16
Time to run: 48.51436686515808, derivs=800, simtype=fullyAugmented
Number of links: 20
Time to run: 77.32109498977661, derivs=800, simtype=fullyAugmented
Number of links: 25
Time to run: 127.00069570541382, derivs=800, simtype=fullyAugmented

Benchmark Simulation Runtimes

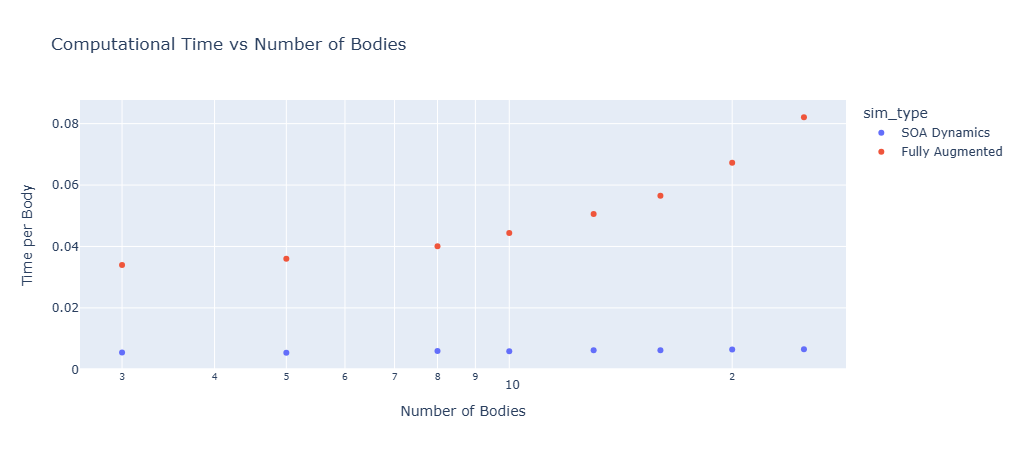

Below the benchmark results are plotted for normalized simulation run times with respect to the number of links. This is the time the simulation takes to run divided by the number of bodies. The Fully Augmented absolute coordinate model is compared to kdFlex’s minimal coordinate tree dynamics simulation.

runtimes = runtimesMinCoord

normalized_times = np.array(runtimes) / np.array(n_links_list)
normalized_times_FA = np.array(runtimesFA) / np.array(n_links_list)

run_data_MinCoord_df = pd.DataFrame(
    {
        "NLinks": n_links_list,
        "RunTimes": runtimes,
        "NormalizedTimes": normalized_times,
    }
)
run_data_MinCoord_df["sim_type"] = "MinCoord Dynamics"

run_data_FA_df = pd.DataFrame(
    {
        "NLinks": n_links_list,
        "RunTimes": runtimesFA,
        "NormalizedTimes": normalized_times_FA,
    }
)
run_data_FA_df["sim_type"] = "Fully Augmented"

run_data = pd.concat([run_data_MinCoord_df, run_data_FA_df], ignore_index=True)

# Create scatter plot
fig = px.scatter(
    run_data,
    x="NLinks",
    y="NormalizedTimes",
    color="sim_type",
    title="Computational Time vs Number of Bodies",
    labels={"NLinks": "Number of Bodies", "NormalizedTimes": "Time per Body"},
    log_x=True,
)

# Show plot if not running in a test environment
if not os.getenv("DTEST_RUNNING", False):
    fig.show()

Summary

By running simulations using Minimal Coordinate Dynamics and Fully Augmented systems, you can see how the performance compares and scales.
