Spice Frames#

This notebook walks the user through the process of creating Spice Frames. The Karana.Frame.SpiceFrame is a special type of Karana.Frame.Frame that is associated with planetary bodies for ephemerides.

Requirements:

In this tutorial we will:

  • Create SpiceFrames for planetary bodies

  • Create SpiceFrameToFrames to tie together ephemerides

  • Setup the kdFlex scene

  • Attach ProxySceneNodes to each planet

  • Query ephemeris data for bodies

  • Run and Clean up the Simulation

For a more in-depth descriptions of kdflex concepts see usage.

import os
import atexit
from typing import cast
from time import sleep
from Karana.Frame import (
    FrameContainer,
    PrescribedFrameToFrame,
    SpiceFrame,
    SpiceFrameToFrame,
)
from Karana.Dynamics import Multibody, PhysicalBody, TimeKeeper, StatePropagator
from Karana.Scene import Color, PerspectiveProjection
from Karana.Math import IntegratorType
from Karana.Scene import ProxySceneNode
from Karana.Models import SyncRealTime, UpdateProxyScene
from Karana.Core import discard

Create SpiceFrames for Planetary Bodies#

In order to use Spice Frames we need to make sure that we’ve loaded the proper NaifKernels. Below we make sure that the path to load these Kernels is correct. These kernels provide the Spice data for inner solar system bodies excluding Mars. To load other planetary bodies you will have to use different Naif kernels

Datasets with Mars are significantly larger in size and take longer to load… hence Mars’ exclusion from this notebook

yam_install = os.getenv("YAM_INSTALL")
if yam_install is not None:
    kpath = yam_install + "/share/Karana/spice_kernels/"
else:
    kpath = "/usr/share/Karana/spice_kernels/"

SpiceFrame.loadNaifKernel(kpath + "naif0012.tls")
SpiceFrame.loadNaifKernel(kpath + "pck00011.tpc")
SpiceFrame.loadNaifKernel(kpath + "de442s.bsp")

We now initialize a Karana.Frame.FrameContainer and create Karana.Frame.SpiceFrame’s for bodies in the inner Solar System.

# initialization
fc = FrameContainer("fc")

# create Spice Frames for celestial bodies
mercury = SpiceFrame(fc, 199)
venus = SpiceFrame(fc, 299)
earth = SpiceFrame(fc, 399)

# load solar system barycenter
ssbc_j2000 = SpiceFrame(fc, 0, 1)

# load the sun and moon
sun_j2000 = SpiceFrame(fc, 10, 1)
moon = SpiceFrame(fc, 301)

Create SpiceFrameToFrames To Tie Together Ephemerides#

We also create Karana.Frame.SpiceFrame2Frame’s to connect the frames to one another. This is necessary in order tie all the ephemeris data together and query/visualize the planetary bodies’ orbits.

# Create some Spice frame to frame edges. These can be from the barycenter to
# a planetary body, or from planetary body to planetary body. It's necessary
# for us to tie all these together so we can obtain relative ephemeris data
# and then visualize it.
SpiceFrameToFrame(ssbc_j2000, sun_j2000)
SpiceFrameToFrame(ssbc_j2000, earth)
SpiceFrameToFrame(ssbc_j2000, mercury)
SpiceFrameToFrame(ssbc_j2000, venus)
SpiceFrameToFrame(earth, moon)

PrescribedFrameToFrame(fc.root(), ssbc_j2000)

# ensure the frame container is healthy and show the frame tree
fc.ensureHealthy()
fc.root().dumpFrameTree()

|-fc
   |-SOLAR SYSTEM BARYCENTER/J2000   [Karana::Frame::SpiceFrame]
      |-MERCURY/IAU_MERCURY   [Karana::Frame::SpiceFrame]
      |-VENUS/IAU_VENUS   [Karana::Frame::SpiceFrame]
      |-EARTH/IAU_EARTH   [Karana::Frame::SpiceFrame]
         |-MOON/IAU_MOON   [Karana::Frame::SpiceFrame]
      |-SUN/J2000   [Karana::Frame::SpiceFrame]

Next we set the epoch to query our Spice Frames with

# Create a StatePropagator to keep track of time and propagate forward
mb = Multibody("mb", fc)
mb.ensureHealthy()
mb.resetData()

sp = StatePropagator(mb, IntegratorType.NO_OP)
sp.setTime(0.0)
sp.setState(sp.assembleState())

# set the epoch and make some queries
sp.getTimeKeeper().setInitialEphemeris(TimeKeeper.utcTimeToEphemeris("2025-12-25T00:00:00"))

Setup the kdFlex Scene#

While creating a multibody is not necessary to use Spice Frames’s, it is convenient to have for using the setup graphics helper method. This makes it a bit easier for us to setup the graphics scene and visualize the Spice Frames.

# cleanup graphics helper method
cleanup_graphics, web_scene = mb.setupGraphics(port=0)
web_scene._setBackgroundColor(Color.BLACK)

# get the location of the Earth and set the web scene camera facing it
earth_loc = fc.root().frameToFrame(earth).relTransform().getTranslation()
web_scene.defaultCamera().pointCameraAt([0.0, 0.0, 1e11], earth_loc, [0, 0, 1])
projection = PerspectiveProjection()
projection.near = 1e8
projection.far = 1e14
web_scene.defaultCamera().setProjection(projection)
del web_scene

# get our proxy scene
proxy_scene = mb.getScene()

Attach ProxySceneNodes to Each Planet#

Below we add ProxySceneNodes for each planetary body we are interested in tracking.

earth_node = ProxySceneNode("earth_scene_node", proxy_scene)
earth_node.attachTo(earth)
earth_node.graphics().showAxes(1e10)
earth_node.graphics().trail(color=Color.BLUE)

ssbc_node = ProxySceneNode("ssbc_scene_node", proxy_scene)
ssbc_node.attachTo(ssbc_j2000)
ssbc_node.graphics().showAxes(8e10)
ssbc_node.graphics().trail()
del ssbc_node

sun_node = ProxySceneNode("sun_scene_node", proxy_scene)
sun_node.attachTo(sun_j2000)
sun_node.graphics().showAxes(4e10)
sun_node.graphics().trail()
del sun_node

mercury_node = ProxySceneNode("mercury_scene_node", proxy_scene)
mercury_node.attachTo(mercury)
mercury_node.graphics().showAxes(1e10)
mercury_node.graphics().trail(color=Color.DARKGRAY)
del mercury_node

venus_node = ProxySceneNode("venus_scene_node", proxy_scene)
venus_node.attachTo(venus)
venus_node.graphics().showAxes(1e10)
venus_node.graphics().trail(color=Color.DARKGOLDENROD)
del venus_node

moon_node = ProxySceneNode("moon_scene_node", proxy_scene)
moon_node.attachTo(moon)
moon_node.graphics().showAxes(5e9)
moon_node.graphics().trail(earth_node.graphics(), color=Color.GREY)
del moon_node
del earth_node

proxy_scene.update()

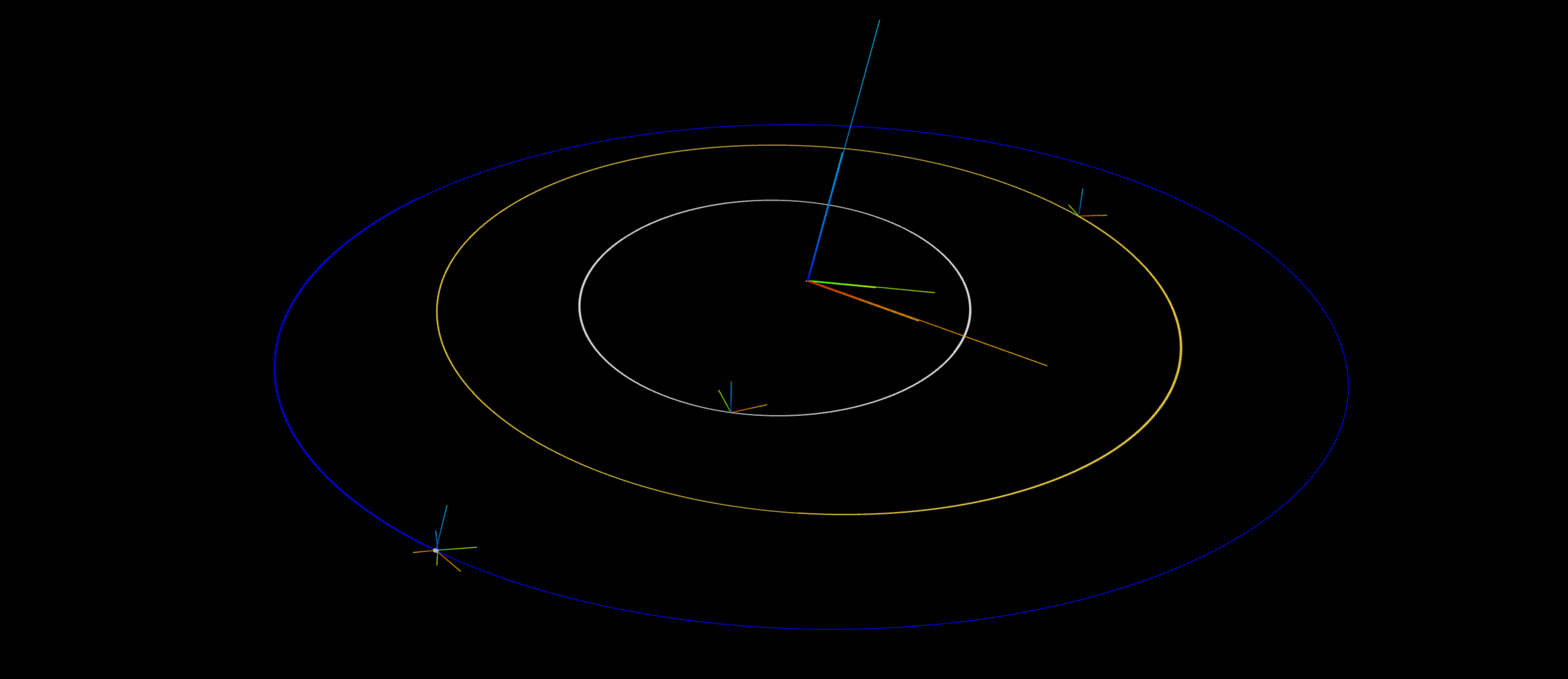

Run and Clean Up the Simulation#

Below we run our simulation. As the StatePropagator advances, it will update the ephemeris and the SpiceFrames locations. However, we need a KModel to update the proxy scene, and we want a KModel to add artificial sleeps in so we can see what is happening. Otherwise, the simulation will proceed so quickly we won’t be able to see anything except the last frame. Hence, we add a SyncRealTime KModel to run this at a fraction of real time, we aim for 1 hour of simulation time every 0.01 seconds.

# Add a model to update the proxy scene
UpdateProxyScene("update_proxy", sp, proxy_scene)

# Add a model to run things in a fraction of real-time
SyncRealTime("sync_time", sp, 3600 / 0.01)

# Run for 2 years in increments of one hour
for _ in range(24 * 365 * 2):
    sp.advanceBy(3600)

Below, we cleanup everything whenever the script exists. This requires us to delete local variables and discard our containers and scene.

# Cleanup
def cleanup():
    """Cleanup the simulation."""
    global mercury, earth, venus, moon, sun_j2000, ssbc_j2000, proxy_scene
    del mercury, moon, venus, earth, sun_j2000, ssbc_j2000, proxy_scene

    discard(sp)
    cleanup_graphics()
    discard(mb)
    discard(fc)
    assert allDestroyed()


atexit.register(cleanup)

<function __main__.cleanup()>
